1995 Explorer Fuse Panel Diagram

The following link is the owners manusl for your explorer the fuse box diagrams start on page 149 for both fuse box and underhood power distribution center.

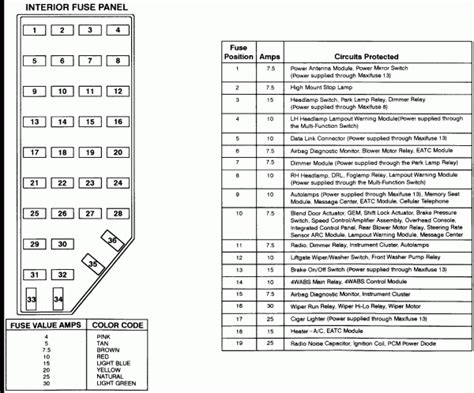

1995 explorer fuse panel diagram. Ford aerostar 1995 ford explorer fuse box diagram by amibox 0503 the ford aerostar is a minivan that was manufactured and marketed by ford for the 1986 to 1997 model years in the united states and canada. On a 1995 ford explorer. Fuse panel and power distribution box identification for 1995 99 explorermountaineer models part 3 fuse panel located inside the passenger compartment under the drivers side of the instrument panel. Transfer case shift relay generatorvoltage regulator airride control air bag diagnostic monitor auxiliary power powertrain control module power seats power lumbar ignition switch hazard flasher brake onoff switch cigar lighter power antenna power mirror memory seats liftgate wiper relau hego system eatc message center autolamp instrument cluster gem radio blower motor relay horn relay blower motor.

17 is the fuse for the cigarette lighter in the fuse panel in the drivers end of the dash if you open the drivers door you will see the removable plastic fuse. In the fuse panel in the drivers end of the dash the fuse panel cover is visible with the drivers door open fuse 17 is a 30 amp fuse for the cigarette lighter. Diagram for fuse box1995 ford explorer not labeled on cover ford 1995 explorer question. Ford explorer 1995 2001 fuse diagram passenger compartment fuse panel the fuse panel is located on the left hand side of the instrument panel facing the drivers side door.

Fuse box located under the left hand. Fuse panel layout diagram parts. Ford explorer 1995 2001 fuse box diagram usa version year of production. A limited number were exported outside north america.

1995 1996 1997 1998 1999 2000 2001. Ford explorer mk2 second generation 1995 2001 fuse box within 1995 ford ranger fuse box diagram by admin 1994 ford ranger. On a 1995 ford explorer.
