Capacitor Start Capacitor Run Induction Motor With Neat Diagrams

Another way to further improve on the single coil single phase induction motor design is to introduce an auxiliary coil which remains powered not only during the motor startup phase but also during normal operation. Capacitor start capacitor run motor the capacitor start capacitor run motor has a cage rotor and its stator has two windings known as main and auxiliary windings. The two windings are displaced 90 degrees in space.

section 125 plan document template printable volleyball practice plan template leave letter sample due to covid nursing cover letter template free resume cover letter template google docs printable letters and numbers for preschoolers loyola certificate programs paparazzi jewelry flyer template

What Is A Capacitor Start Capacitor Run Motor Its Phasor

How Does A Capacitor Start A Capacitor Run Induction Motor

Capacitor Start Capacitor Run Induction Motor Electricalvoice

Startrun capacitor ac induction motors.

Capacitor start capacitor run induction motor with neat diagrams. Known as a cscr motor for short this type of motor combines the best features of the capacitor startinduction run the motor and the permanent split capacitor motor. As opposed to an ac motor using only a motor start capacitor which creates a pulsating. Types of single phase induction motors electrical a2z single phase induction motors are traditionally used in residential applications such as ceiling fans air conditioners washing machines and refrigerators single phase motor wiring with contactor diagram the plete guide of single phase motor wiring with circuit breaker and contactor diagram. A capacitor start capacitor run induction motor is a single phase motor consists of a stator and a single cage rotor.

Capacitor start induction motor a capacitor start motors are a single phase induction motor that employs a capacitor in the auxiliary winding circuit to produce a greater phase difference between the current in the main and the auxiliary windings. Main winding and an auxiliary winding. The applications that uses this motor is air compressors high pressure water pumps wood working machinery vacuum pumps and other application that need high torque 1 to 1o hp. There are two capacitors in this method one is used at the time of the starting and is known as starting capacitor.

However this motor is expensive because this motor use centrifugal switch and run and start capacitors. The stator has two windings ie. Thus a capacitor start induction run motor produces a better rotating magnetic field than the split phase motors. Starting purpose capacitor is of electrolytic type and is disconnected from the supply when the motor attains 75 of synchronous speed with the help of centrifugal switch s connected in series with c s.

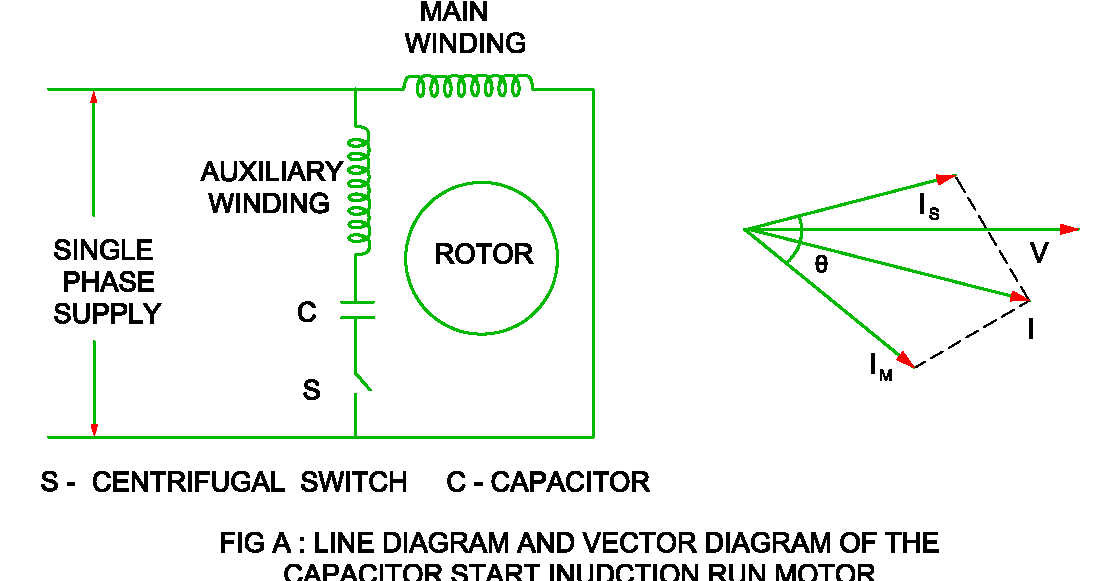

In construction these two windings are placed 900 apart in space. It is evident from the phasor diagram that the current through the starter winding is leads the voltage v by a small angle and the current through the main winding im lags the applied voltage. Here is the typical circuit of capacitor runstart induction. Two capacitors are used in capacitor start capacitor run motor or two value capacitor motor one for starting purpose and other for running purpose.

Even though their construction makes them somewhat more expensive than other single phase motor types they are the perfect choice for demanding applications. The name capacitor starts itself shows that the motor uses a capacitor for the purpose of the starting. The auxiliary winding is also known as starting winding. Single phase motor wiring diagram with capacitor start.
